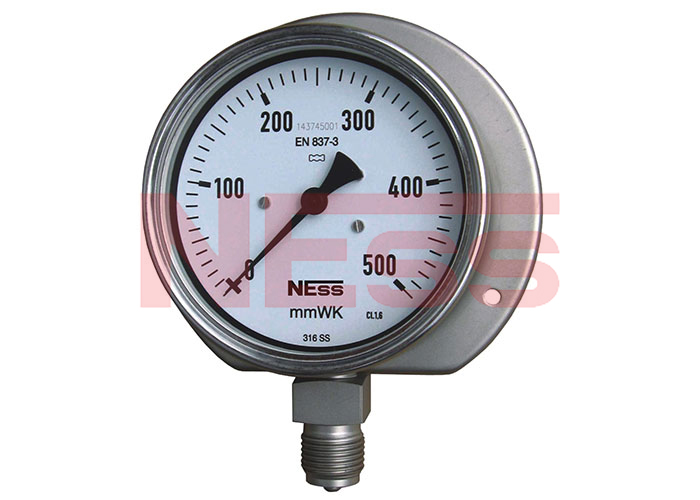

STAINLESS STEEL PRESSURE GAUGE CAPSULE TYPE - MODEL PC

PC (All Stainless Steel - Capsule Type)
Reference Standard EN 837-3 / IS 3624
Nominal Dial Size (mm) 63, 100, 125, 150
Range -6000mmWC to 0, 0 to 6000mmWC
Accuracy ±1.6% of F.S
Mounting Type Click Here
Connection Size 1/4” , 3/8”, 1/2", M20
Connection Type NPT, BSP, G, R, Metric etc
Socket AISI 316L SS
Sensing Element AISI 316L SS (Capsule)
Case & Bezel Bayonet AISI 304 SS / AISI 316 SS
Pointer Aluminium, Zero Adjustable
Movement AISI 304 SS
Window (Glass) Shatterproof / Plexy / Toughened
Enclosure Protection IP 65
Options Oxygen Service (For Dry Version)
On-Off Type Vent Plug

Download Send Enquiry

Applications

  • Food & Beverage
  • Pharmaceutical
  • Conventional & Nuclear Power Plants
  • Draft Measurement
