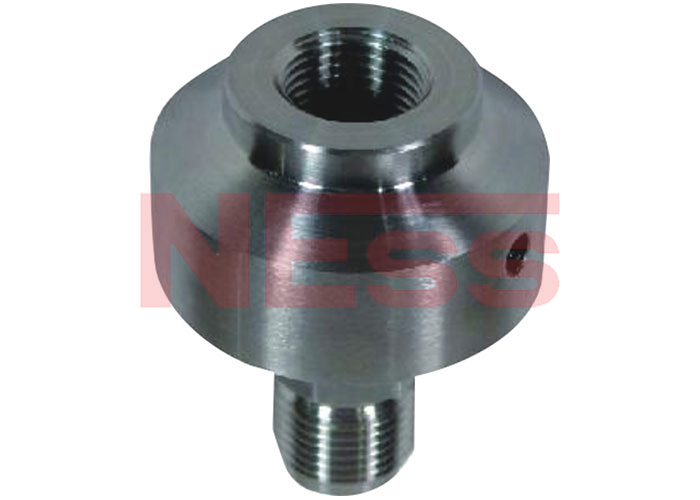

DIAPHRAGM SEAL HEAVY DUTY MINI SEAL - MODEL CSG

CSG (Heavy Duty mini seal)
Range -1 to 600 kg/cm²
Instrument Connection 1/4" or 1/2" BSP(F)
Process Connection Size 1/2" BSP(M)
Diaphragm AISI 316L SS
Body AISI 316 SS
Filling Fluid Silicon Oil
Mounting With Capillary
Compatible Models PB, PP, PS, PJ, PBQ
Options Capillary Up to 2 Meter

Download Send Enquiry

Applications

  • Diaphragm seals are provided in the instruments like pressure gauges, switches, transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous and sedimented nature and to avoid clogging and solidification.
