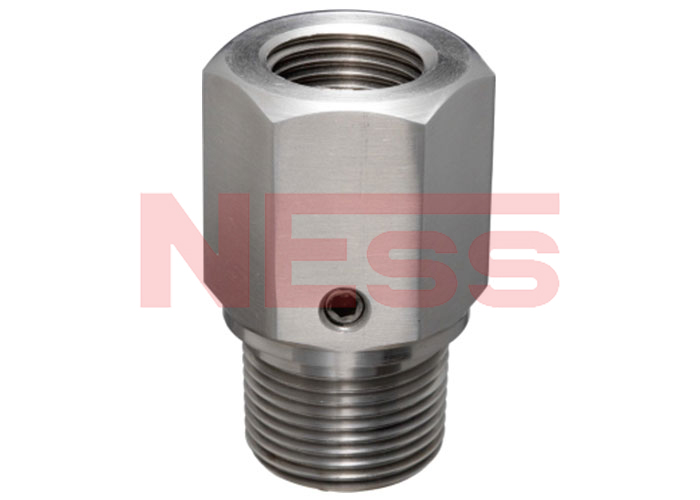

DIAPHRAGM SEAL SCREWED FLUSH TYPE - MODEL CSF

CSF (Screwed Flush Type)
Range 4 to 600 kg/cm²
Instrument Connection 1/4" BSP(F)
Process Connection Size 3/4” BSP(M)
Diaphragm AISI 316L SS
Body AISI 316 SS
Filling Fluid Silicon Oil
Mounting Direct (Without Capillary)
Compatible Models PM, PB
Options Material Test Certificate

Download Send Enquiry

Applications

  • Diaphragm seals are provided in the instruments like pressure gauges, switches, transmitters in order to isolate the sensing and sedimented nature and to avoid clogging and solidification element from the main service due to its corrosive, viscous.
