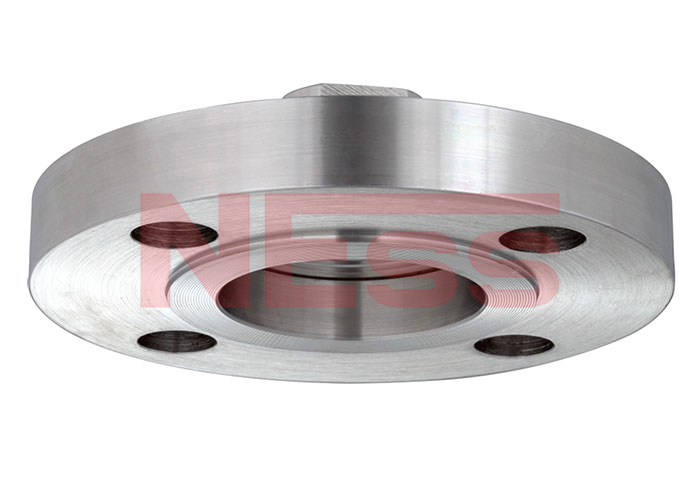

DIAPHRAGM SEAL DIRECT FLANGED INSERT TYPE - MODEL CSK

CSK (Direct Flanged Insert Type)
Range -1 to 0 kg/cm² & 0 to 250 kg/cm²
Instrument Connection 1/2" BSP (F)
Process Connection Flange as per ANSI, JIS, DIN, BS
Diaphragm AISI 316L SS, Monel, Hastelloy C
Bottom Chamber (Flange) AISI 316 SS, Monel, Hastelloy C
Filling Fluid Silicon Oil
Flange Size 1½" and above only
Compatible Models PP, PS, PB, PJ, PBQ
Options Capillary Up to 20 Meter
Conformity as per NACE Standard

Download Send Enquiry

Applications

  • Diaphragm seals are provided in the instruments like pressure gauges, switches, transmitters in order to isolate the sensing element from the main service due to its corrosive, viscous and sedimented nature and to avoid clogging and solidification. These kind of seals are widely used in the viscous & corrosive services where flushing is required periodically & frequently.
